CTX Orthoimage of Candidate Mars 2020 Landing Site Jezero West
- Primary Authors
- Robin L. Fergason
- Originators
- R.L. Fergason, T.M. Hare, R.L. Kirk, S. Piqueux, D.M. Galuzska, M.P. Golombek, R.E. Otero, B.L. Redding
- Publisher
- USGS Astrogeology Science Center
- Publication Date
- 2017-03-20
- Abstract

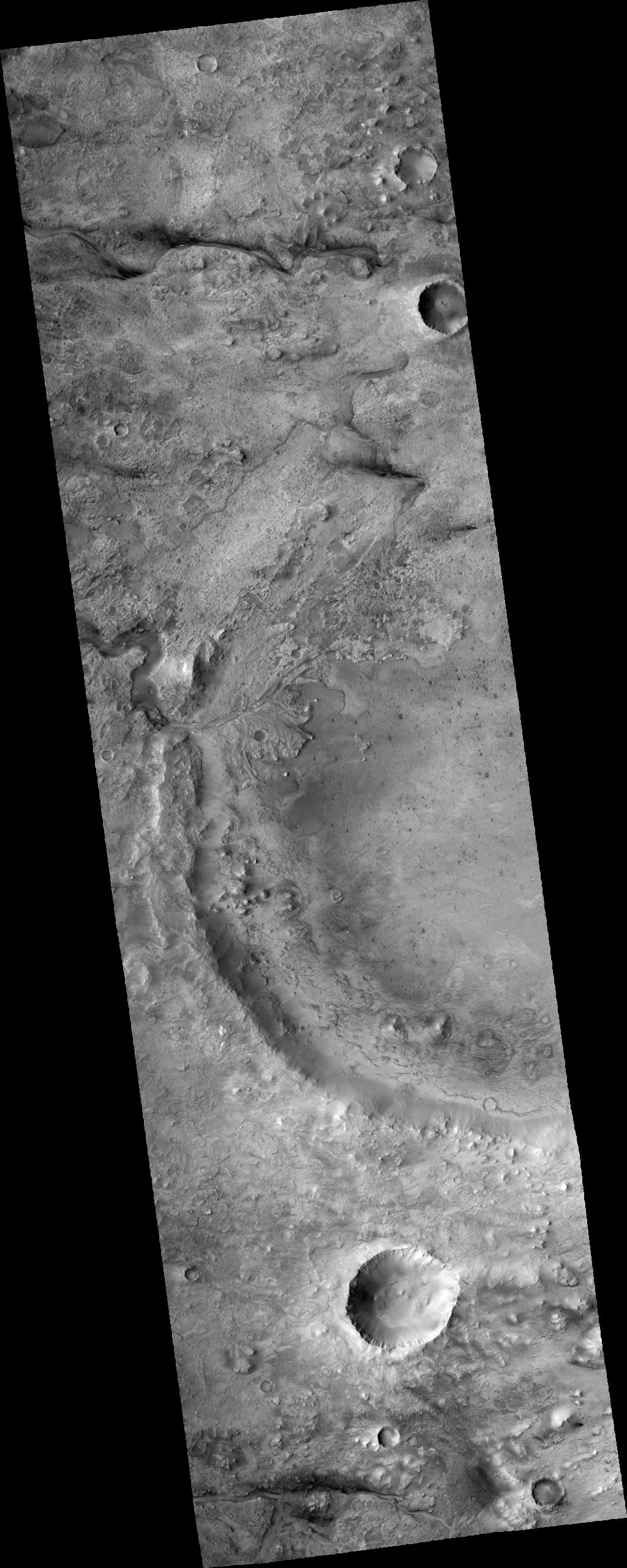

- This product represents an orthorectified CTX image within part of a candidate landing site for the Mars2020 mission. The CTX image from which this product was derived is one member of a stereopair. Together, the images in the stereopair were used to construct a digital terrain model (DTM). The original images in the stereopair were then orthorectified using the DTM. This orthorectified image was produced as part of an effort to characterize terrain within candidate landing ellipses for the Mars2020 mission and to aid entry, descent, and landing simulations for the mission. The parent DTM was constructed from a pair of CTX images using the stereo photogrammetry software SOCET SET® (BAE Systems). The DTM from which this product was derived and the other orthorectified member of the corresponding stereopair are available under the "Related Products" section on the right of this page. Preferred Citation: R.L. Fergason, T.M. Hare, R.L. Kirk, S. Piqueux, D.M. Galuzska, M.P. Golombek, R.E. Otero, and B.L. Redding, 2017, "Mars 2020 Landing Site Evaluation: Slope and Physical Property Assessment," 48th Lunar and Planetary Science Conference, held 20-24 March 2017, at The Woodlands, Texas. LPI Contribution No. 1964, id.2163. Reference: R.L. Fergason, R.L. Kirk, G. Cushing, D.M. Galuszka, M.P. Golombek, T.M. Hare, E. Howington-Kraus, D.M. Kipp, B.L. Redding, 2016, "Analysis of Local Slopes at the InSight Landing Site on Mars," Space Sci. Rev., 1572-9672, doi:10.1007/s11214-016-0292-x.
- Purpose
- This orthorectified image was produced as part of an effort to characterize terrain within candidate landing ellipses for the Mars2020 mission and to aid entry, descent, and landing simulations for the mission.
Contact and Distribution
- Format
- Landing Site Map, Raster Data
- Access Constraints
- Public Domain
- Access Scope
- Use Constraints
- Please Cite Authors
- Edition
- 1
- Supplemental Information
- https://dx.doi.org/10.1007/s11214-016-0292-x
- Native Data Set Environment
- ISIS v3
- Astrogeology Theme
- Landing sites, Photogrammetry
- Mission Names
- Mars Reconnaissance Orbiter
- Instrument Names
- CTX
- Online Package Link
- https://astrogeology.usgs.gov/search/map/ctx_orthoimage_of_candidate_mars_2020_landing_site_jezero_west
- External File Size
- 117 MB
- Online File Link
- https://planetarymaps.usgs.gov/mosaic/mars2020_landing_site_dtm/J03_045994_1986_XN_18N282W_6m_ORTHO.tif
- Contact Address
- 2255 N. Gemini Drive
- Contact City
- Flagstaff
- Contact State
- AZ
- Contact Postal Code
- 86001
- Contact Email
- astroweb@usgs.gov
- Currentness Reference
- Publication date
- Progress
- Complete
- Update Frequency
- None planned
- Process Description
- The CTX image from which this product was derived is one member of a stereopair. The members of the stereopair were first radiometrically calibrated using the USGS ISIS3 software. The calibrated images were then stretched to enhance the clarity of features in the scene and then resampled to 8 bits per pixel. These pre-processed images were then used to construct a digital terrain model (DTM) using the stereo photogrammetry software SOCET SET® (BAE Systems). The original stretched and resampled images were then orthorectified using the DTM. See Fergason et al. (2016) for a detailed processing description.
- Source Title
- CTX
- Source Online Linkage
- http://pds-imaging.jpl.nasa.gov/volumes/mro.html
- Source PDS Archive
- Mars Reconnaissance Orbiter
- Horizontal Positional Accuracy Report
- Accurate to Control Net
- Vertical Positional Accuracy Report
- Accurate to Control Net
Geospatial Information
- Target
- Mars
- System
- Mars
- Minimum Latitude
- 17.535794352773
- Maximum Latitude
- 19.319705663163
- Minimum Longitude
- 77.08300997
- Maximum Longitude
- 77.79602172
- Direct Spatial Reference Method
- Raster
- Object Type
- Grid Cell
- Raster Row Count (lines)
- 17448
- Raster Column Count (samples)
- 6974
- Bit Type (8, 16, 32)
- 8
- Quad Name
- MC-13
- Radius A
- 3396190
- Radius C
- 3376200
- Bands
- 1
- Pixel Resolution (meters/pixel)
- 6.0603893249424
- Scale (pixels/degree)
- 9780.67486182
- Map Projection Name
- Equirectangular
- Latitude Type
- Planetocentric
- Longitude Direction
- Positive East
- Longitude Domain
- 0 to 360
