Using SpiceQL With Other Tools¶
SpiceQL is a C++ library with python bindings for managing and searching SPICE kernels, and it can be used in conjunction with other planetary science tools such as ALE and SpiceyPy. This guide demonstrates how to integrate SpiceQL with both ALE and SpiceyPy in your workflow.
Using Just SpiceQL
If you want to see how to do this same task using just SpiceQL, check out the getting-started tutorial.
Getting Local Kernels
Before following these steps, make sure you have your kernels downloaded locally. Follow these instructions for more info.
spicepy/cspice¶
SpiceQL enables:
- Queries to select a set of kernels
- An interface to furnish kernels in a fixed scope
The general workflow is:
- Search for kernels
- furnish the kernels in a fixed scope
- call whatever cspice/spiceypy function you want to use
Boilerplate for the impatient:
# import
import spiceypy
import pyspiceql as spql
# get supported frames
print(spql.frameList())
# check alias list
aliasMap = spql.getAliasMap()
print(aliasMap)
# we need the spiceql name for the mission the kernels belong to, you can use the alias map to get spiceql names
body_names = [spql.getSpiceqlName("LRO_LROCNACR"), "mro", "mars", "moon"] # ... you can add more
# delete the types you do not want
kernel_types = ["ck", "spk", "tspk", "lsk", "sclk", "iak", "ik", "fk", "dsk", "pck"]
# search for kernels, all spiceql calls return a tuple of (data, kernels)
# use limitSpk and limitCk to limit the number of time kernels returned, -1 to get all matching kernels
_, kernels = spql.searchForKernelsets(body_names, kernel_types,
startTime=-1e100, # start time (default: -double max, covers all)
stopTime=1e100, # stop time (default: double max, covers all)
ckQualities=["smithed", "reconstructed"], # CK quality priorities
spkQualities=["smithed", "reconstructed"], # SPK quality priorities
useWeb=False, # use web service if True
fullKernelPath=False, # return relative paths if False
limitSpk=-1, # limit number of SPKs, -1 returns all matching SPK kernels
limitCk=-1, # limit the number of CKs, -1 returns all matching CK kernels
overwrite=False) # if True, later kernels overwrite earlier ones
# should print a dict in the form of {"kernel_type" : key} with paths relative to $SPICEROOT
print(kernels)
# furnish the kernels, if there are many CKs/SPKs it might take a second
with spql.KernelSet(kernels):
# do stuff
pass
// C++ Boilerplate for using SpiceQL with CSPICE
#include <iostream>
#include <vector>
#include <string>
#include "spiceql/api.h"
using namespace std;
int main() {
// Get supported frames
auto frames = SpiceQL::frameList();
for (const auto& frame : frames) {
std::cout << frame << std::endl;
}
// Define body names (missions, planets, etc.)
std::vector<std::string> body_names = {"mro", SpiceQL::getSpiceqlName("LRO_LROCNACR"), "mars", "moon"}; // add more as needed
// Define kernel types to search for
std::vector<std::string> kernel_types = {"ck", "spk", "tspk", "lsk", "sclk", "iak", "ik", "fk", "dsk", "pck"};
// Search for kernels; returns a tuple of (data, kernels)
// Use limitSpk and limitCk to limit the number of kernels returned, -1 to get all matching kernels
auto [data, kernels] =
SpiceQL::searchForKernelsets(body_names, kernel_types,
-std::numeric_limits<double>::max(),// startTime
std::numeric_limits<double>::max(), // stopTime
{"smithed", "reconstructed"}, // ck qualities
{"smithed", "reconstructed"}, // spk qualities
false, // useWeb, uses the web service if true
false, // fullKernelPath, false to get relative paths
-1, // limitCk, -1 for all CKs
-1, // limitSpk, -1 for all SPKs
false); // overwrite, merge kernels without overwritinf
cout << kernels.dump(2) << endl;
// Furnish the kernels using KernelSet (RAII pattern)
{
SpiceQL::KernelSet kset(kernels);
// Do stuff with CSPICE here
// Example: call spkpos_c, etc.
} // kernels are unfurnished here
return 0;
}
Cassini Example¶
This is a rewrite of spiceypy's Cassini Example. We simply add spiceql calls in order to get the kernels needed.
First, import spicepy and spiceql
We then set up our variables and do a search for the kernels we need for our example
# Using SpiceQL to get kernels for cassini, but we also need base and saturn
body_names = ["cassini", "base", "saturn"]
# we will need enough to get positions
kernel_types = ["spk", "lsk", "sclk", "fk"]
# make our lives easier by using pyspiceql to get times
utc = ["Jun 20, 2004", "Dec 1, 2005"]
et1, _ = spql.utcToEt(utc[0])
et2, _ = spql.utcToEt(utc[1])
# search for kernels, all spiceql calls return a tuple of (data, kernels)
_, kernels = spql.searchForKernelsets(body_names, kernel_types, startTime=et1, stopTime=et2,
limitSpk=-1, limitCk=-1,
spkQualities=["reconstructed"], ckQualities=["reconstructed"])
# should print a dict in the form of {"kernel_type" : key} with paths relative to $SPICEROOT
print(kernels)
Using KernelSet to furnish the kernels returned from the search. KernelSet has context manager support to limit
the scope of the furnished kernels using the with statement.
# use spiceypy to do things
step = 4000
# we are going to get positions between these two dates
utc = ["Jun 20, 2004", "Dec 1, 2005"]
with spql.KernelSet(kernels):
# use spiceypy to do things
step = 4000
# we are going to get positions between these two dates
print("ET One: {}, ET Two: {}".format(et1, et2))
times = [x * (et2 - et1) / step + et1 for x in range(step)]
positions, lightTimes = spice.spkpos(
"Cassini", times, "J2000", "NONE", "SATURN BARYCENTER"
)
# kernels are unloaded after leaving the context

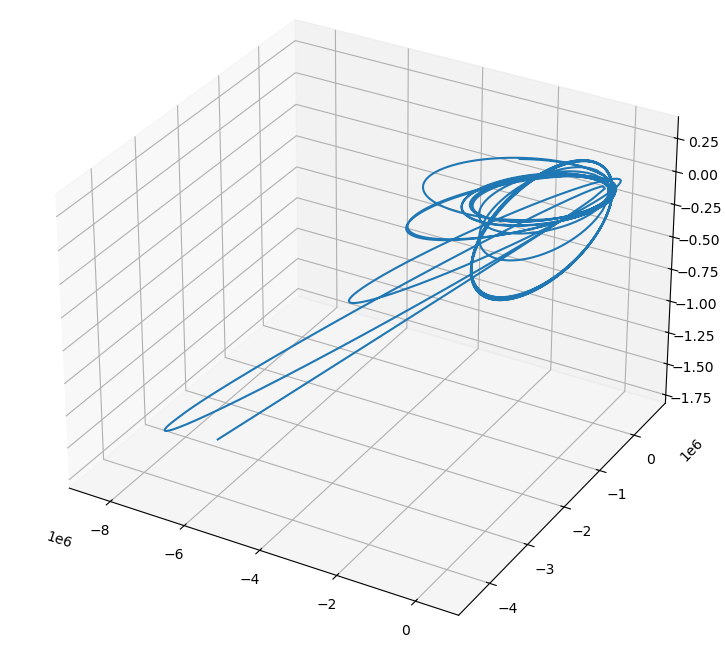

You can then plot the positions with matplotlib
import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D
positions = (
positions.T
) # positions is shaped (4000, 3), let's transpose to (3, 4000) for easier indexing
fig = plt.figure(figsize=(9, 9))
ax = fig.add_subplot(111, projection="3d")
ax.plot(positions[0], positions[1], positions[2])
plt.title("SpiceyPy Cassini Position Example from Jun 20, 2004 to Dec 1, 2005")
plt.show()
// Get your includes in
#include <iostream>
#include <vector>
#include <string>
// cspice includes
#include <SpiceUsr.h>
#include "spiceql/api.h"
// Using SpiceQL to get kernels for cassini, but we also need base and saturn
std::vector<std::string> body_names = {"cassini", "base", "saturn"};
// we will need enough to get positions
std::vector<std::string> kernel_types = {"spk", "sclk", "lsk", "fk"};
// define the kernel times in UTC and setup the step
std::vector<std::string> utcs = {"Jun 20, 2004", "Dec 1, 2005"};
double step = 4000.0;
// make our lives easier and use spiceql to get times
double et1 = SpiceQL::utcToEt(utcs[0]).first;
double et2 = SpiceQL::utcToEt(utcs[1]).first;
// Search for kernels; returns a tuple of (data, kernels)
// Use limitSpk and limitCk to limit the number of kernels returned, -1 to get all matching kernels
auto [data, kernels] =
SpiceQL::searchForKernelsets(body_names, kernel_types,
et1, // startTime
et2, // stopTime
{"smithed", "reconstructed"}, // ck qualities
{"smithed", "reconstructed"}, // spk qualities
false, // useWeb, uses the web service if true
false, // fullKernelPath, false to get relative paths
-1, // limitCk, -1 for all CKs
-1, // limitSpk, -1 for all SPKs
false); // overwrite, merge kernels without overwriting
// print kernels, a json dict in the form "kernel_type" : ["kernels"]
std::cout << kernels.dump(2) << std::endl;
// Furnish the kernels using KernelSet (RAII pattern)
{
SpiceQL::KernelSet kset(kernels);
// make sure to check for cspice errors after
std::vector<SpiceDouble> times;
for (int x = 0; x < step; ++x) {
SpiceDouble t = x * (et2 - et1) / step + et1;
times.push_back(t);
}
for (auto &t : times) {
SpiceDouble position[3];
SpiceDouble ltime;
spkpos_c("Cassini", t, "J2000", "NONE", "SATURN BARYCENTER", position, <ime);
std::cout << "Position at time " << t << " is [" << position[0] << ", " << position[1] << ", " << position[2] << "] and ltime is " << ltime << std::endl;
}
} // kernels are unfurnished here
ALE/CSM¶
Info
As of ALE 1.0, it is recommended that you use isd_generate.py to get SPICE info for a camera. SpiceQL is integrated.
