HiRISE Anaglyphs¶

Not recommended for polar regions

This anaglyph procedure is recommended for lower-latitude coverage. Polar region stereo coverage is more complex and has not been streamlined yet.

Preparation - SPICE¶

Overview¶

Select two stereo observations
Use RED0-9
Begin with calibrated images
Geometric control is an option (ccd-to-ccd)
Run spiceinit on all RED CCD’s0-9 for both observations
- Default to system shape model
- Kernels Group with loaded SPICE keywords

Kernels Group

Group = Kernels
  NaifIkCode = -74699
  LeapSecond = $base/kernels/lsk/naif0008.tls
  TargetAttitudeShape = $base/kernels/pck/pck00008.tpc
  TargetPosition = Table
  InstrumentPointing = Table
  Instrument = Null
  SpacecraftClock = $mro/kernels/sclk/MRO_SCLKSCET.00021.65536.tsc
  InstrumentPosition = Table
  Frame = $mro/kernels/fk/mro_v08.tf
  InstrumentAddendum = $mro/kernels/iak/hiriseAddendum003.ti
  ShapeModel = $base/dems/molaMarsPlanetaryRadius0001.cub
End_Group

Run spicefit on all Red CCD’s 0-9 for both image observations¶

Fit cube to InstrumentPointing parameters with spicefit

Do this for each image in the observation.

spicefit from=psp_red0.cub

Map Template¶

Make map templates and compare

Create a map template from both observations and compare. The input is a list of the images in each observation.

maptemplate fromlist=img1_0-9.lis map=img1.map proj=EQUIRECTANGULAR clat=0.0 clon=0.0 rngopt=CALC resop=CALC
maptemplate fromlist=img2_0-9.lis map=img2.map proj=EQUIRECTANGULAR clat=0.0 clon=0.0 rngopt=CALC resop=CALC

Evaluate the information within img1.map and img2.map.

Figure out the map values that will satisfy the coverage of both observations.

latitude range, longitude range
center latitude, center longitude
average pixel resolution

Local Radius¶

Find the local radius values with campt and getkey

The default system shape model will be referenced (spiceinit).

Specify the center of each observation (Number of Lines / 2),
and get the local radius there:

campt from=psp_red5_img1.cub samp=1 line=(nlines/2) to=red5_pt1.dat
getkey from=red5_pt1.dat grpnname=GroundPointkeyword=LocalRadius

campt from=psp_red5_img2.cub samp=1 line=(nlines/2) to=red5_pt2.dat
getkey from=red5_pt2.dat grpname=GroundPointkeyword=LocalRadius

Calculate an average local radius and store it in NAIF format

Calculate the average “local radius” value from the values found with campt
Convert the average value from meters to kilometers
Build a NAIF-format text file with the average local radius (km)

*LocalRad3391.97.tpc contents

\begindata
BODY499_RADII       = ( 3391.97   3391.97 3391.97)

Modify Labels¶

Edit labels with editlab

Do this for all RED0-9 images, in both observations.

Remove ShapeModel reference from labels

editlab from=psp_red0_img1.cub options=modkeygrpname=Kernels keyword=ShapeModel value=Null

Add the "new" NAIF .tpcfile with the local radius to the Kernels group

editlab from=psp_red0_img1.cub options=modkeygrpname=Kernels keyword=Instrument keyvalue= LocalRad3391.97.tpc

We are temporarily using an 'unused' keyword (Instrument) for the local radius .tpcfile; this keyword follows the main TargetAttitudeShape keyword which MUST retain reference to the original NAIF .tpcfile (we are mimicking a ‘search’ list for radius value).

Kernels Group with modified keywords

Group = Kernels
  NaifIkCode = -74699
  LeapSecond = $base/kernels/lsk/naif0008.tls
  TargetAttitudeShape = $base/kernels/pck/pck00008.tpc
  TargetPosition = Table
  InstrumentPointing = Table
  Instrument          = LocalRad3386.70.tpc
  SpacecraftClock = $mro/kernels/sclk/MRO_SCLKSCET.00021.65536.tsc
  InstrumentPosition = Table
  Frame               = $mro/kernels/fk/mro_v08.tf
  InstrumentAddendum = $mro/kernels/iak/hiriseAddendum003.ti
  ShapeModel = Null
End_Group

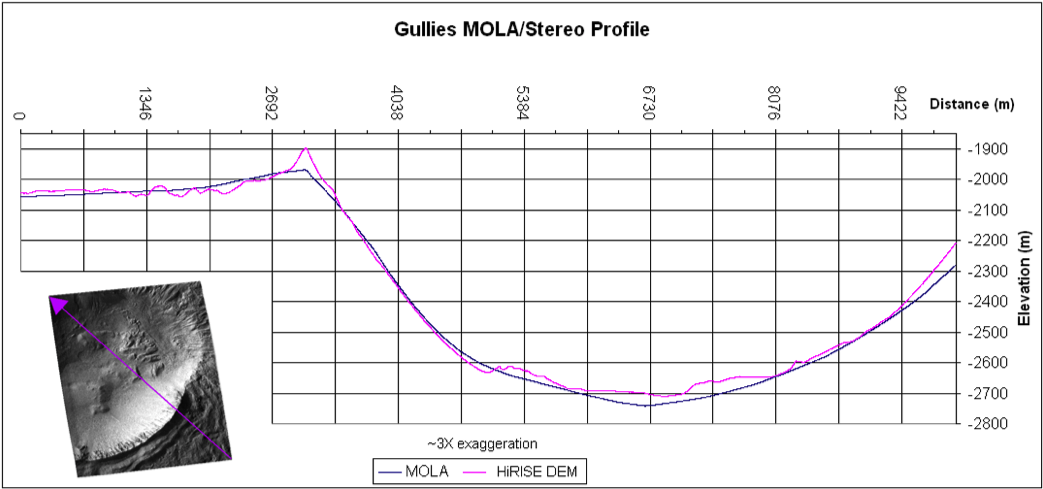

Gallery - Local Radius and Stereo Information

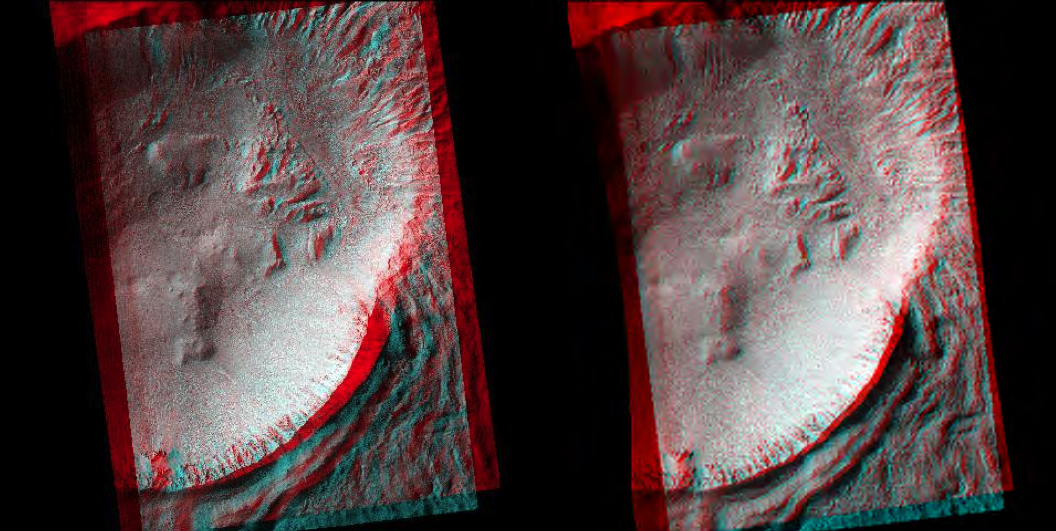

Local Radius retains both high and low frequency stereo data
The mapping results for left/right views are too far apart. Example of bad local radius.

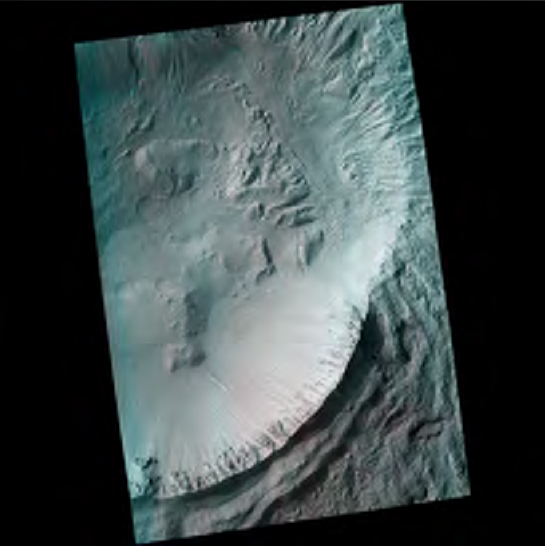

All stereo information removed

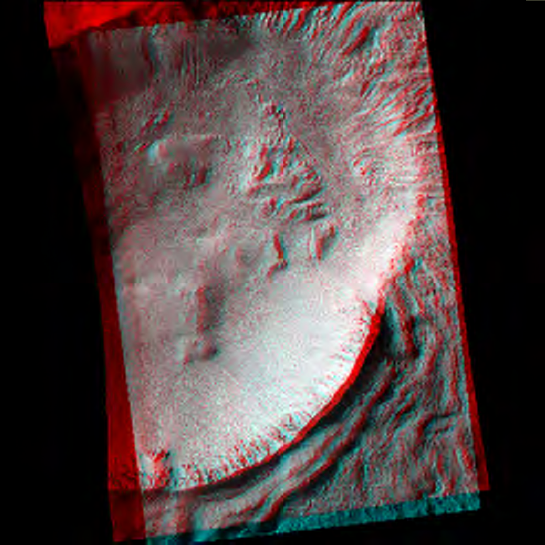

Low frequency stereo information is removed; (e.g., gentle slopes across the scene)

Map Projection¶

Map Template¶

equi.map

Build a Map Template for cam2map. Specify the Ellipsoid values for Mars Contents:

::::::::::::::
equi.map
::::::::::::::
Group = Mapping
  ProjectionName = Equirectangular
  CenterLongitude = 353.18
  CenterLatitude = 8.06
  TargetName = mars
  EquatorialRadius = 3396190.0 <meters>
  PolarRadius = 3376200.0 <meters>
  LatitudeType = Planetocentric
  LongitudeDirection = PositiveEast
  LongitudeDomain = 360
  PixelResolution = 0.28 <meters/pixel>
End_Group
End

Map Projection¶

Map Project all images in both observations with cam2map

Run cam2map on both observations, all RED0-9 images.

cam2map from=psp_red0_img1.cub map=equi.mapto=psp_red0_eq.cub pixres=map defaultrange=camera

OR Use the -batchlist option

cam2map –batchlist=all_reds.lis from=\$1.balance.cub to=\$1.eq.cub pixres=map defaultrange=camera

all_reds.lis should not include file extensions
Let cam2map figure out the lat/lon boundaries of each individual CCD

Mosaics¶

Create Two RED[0-9] Mosaics¶

Mosaic with automos

Create a list of cam2map output files for each observation

Mosaic the projected Red CCDs;
Specify the same latitude/longitude boundaries for the output mosaics:

automos fromlist=img1_eq.lis mosaic=img1_RedMos.cub grange=user minlat=  maxlat=  minlon=  maxlon=
automos fromlist=img2_eq.lis mosaic=img2_RedMos.cub grange=user minlat=  maxlat=  minlon=  maxlon=

Determine the 'Left Look'

Get the SubSpacecraft Longitudes from the campt output files from earlier.

getkey from=red5_pt1.dat grpnname=GroundPointkeyword=SubSpacecraftLongitude
getkey from=red5_pt2.dat grpnname=GroundPointkeyword=SubSpacecraftLongitude

The observation with the furthest west SubspacecraftLongitude is the "Left Look."
(subspc1 < subspc2) or (subspc2 < subspc1)

Assumptions¶

Observation pair has a longitude range within 0 –360 longitude
LongitudeDomain = 360
Neither image pair crosses the 0 and/or the 360 longitude boundary
cam2map defaults to reassigning the LongitudeDomain if the image crosses a 0/360/180 boundary

Stack Left/Right Observations¶

Stack with cubeit

Create a list of input cubes

ls left_redmos_img.cub > c.lis
ls right_redmos_img.cub >> c.lis

Stack Cubes
```
cubeit list=c.lis to=anag.cub
```

Display anag.cub with qview

Band1 = Red
Band2 = Green
Band2 = Blue
